Neoloch Inquisitor IC Testing System

One of a few products not manufactured in-house, this is the "Neoloch Inquisitor", an IC testing system designed with portability and versatility in mind. The core module contains the LCD display, power supply connections and other common components necessary for user input & visual output. There are then various "blades" that change the functionality of the tester (ie. SRAM Tester blade, 6821 PIA Tester blade, etc).


Inquisitor Core

PIA Blade


SRAM Blade




Manufacturer's Quote:
NeoLoch's new Inquisitor testing system expands on our previous designs. We took all the common components to our testers and wrapped them up in the "Core" module and added a card edge socket. All the specific components were placed on a "Blade". This new system allows us to create a much wider range of testing aids.

This interchangeable system allows the user to focus in on a group of testing aids. And allows us to respond to user desired tests with greater ease. NeoLoch's first blade is for static RAM with many blades planned for future release, these include a PIA blade, a 9060 DRAM blade, along with many other exciting blades planned for the future.

Inquisitor Testing System Features:
  • 2 x 16 character LCD display
  • System error LEDs
  • Bi-Color test status LED
  • 2.1mm DC power jack
  • 40 pin ZIF socket
  • 5 Control Switches
  • Onboard +12V and +5V voltage regulator
  • 4 mounting holes
  • Selectable regulated or unregulated +12V power source

*Please Note: NO POWER ADAPTER IS INCLUDED *except* for the SUPER BUNDLES. We do have power supplies available separately (see option below) if you're not purchasing a SUPER BUNDLE. Otherwise, you will need a 12v regulated or unregulated 2.1mm North American type wall mount power supply that can supply at least 200ma current in order to power this tester.

SRAM BLADE (sold separately or in bundle)
The static RAM blade tests the following types of static RAM: 2101, 5101, 2016, 2018, 2114, 6514, 9114, 2125, 2147, 2148, 2149, 2465, 6264, 4016, 6116, 6810, 74189, M5M5189, 62256, W24257, W24512

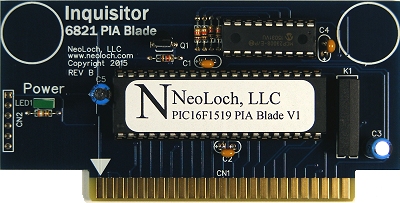

PIA BLADE (sold separately or in bundle)
This updated blade now supports 6532 RIOT, "Ram IO Timer", as well as the 6520 & 6821 PIA "Peripheral Interface Adapter" ICs. Testing of ICs is much faster thanks to a MCU running at 32 MHz (PIC16F1719) along with a simplified progress bar during the testing process.

After the test is complete any errors detected can be displayed for further diagnosis. Tests include conducted by the PIA blade include (but are not limited to):

  • PORTA & B read / write
  • CA1 & CA2 interrupts
  • CA2 output modes
  • CB1 & CB2 interrupts
  • CB2 output modes
  • Rising and falling edge triggers
  • IRQA and IRQB
  • 6532 RIOT Support

PURCHASING NOTE -- The CORE cannot function by itself and requires at least one blade to be purchased.
You'll save a few bucks buying a CORE + Blade bundle too. See below for purchasing options.




INQUISITOR SUPER BUNDLE

This bundle includes the Inquisitor CORE Module, SRAM Blade (Static RAM Blade), PIA Blade & a Wall Mount Power Supply (North American Plug). This bundle also offers the most savings. Available as a DIY KIT only at this time.
